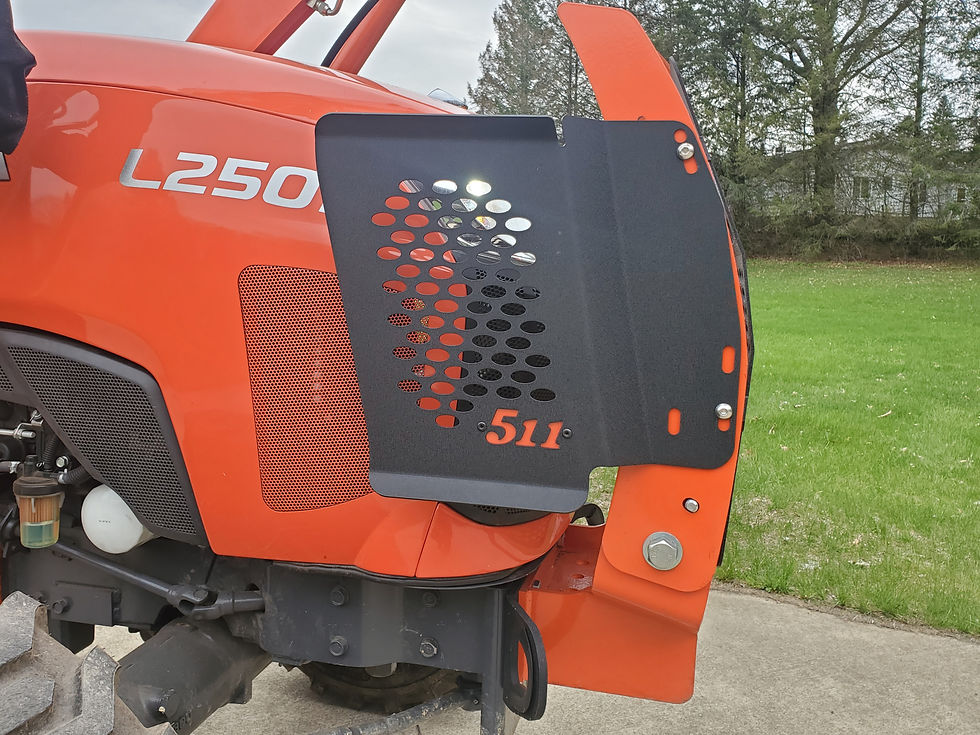

Don't just protect your investment from the front, protect from debris coming into your grill from the corner and sides as well. Our front guards do a great job of protecting your grill and raditor, but many customers have requested the additional peace of mind by having full wrap around protection.

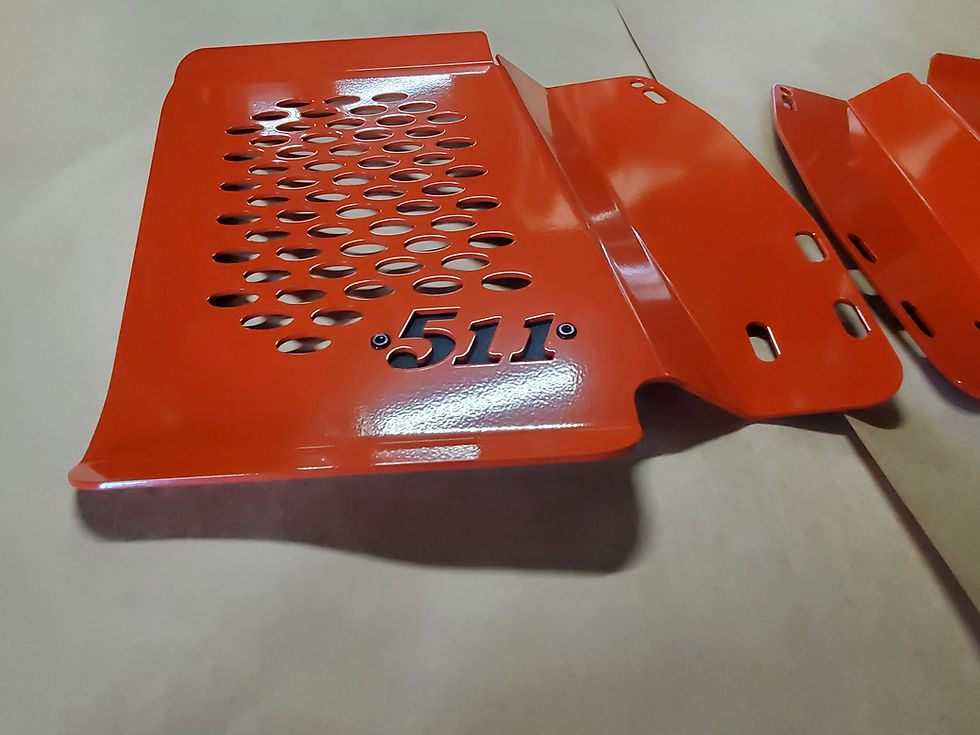

Laser cut from the same 11 gauge (1/8") steel as our front guards, formed using a CNC press brake and coated with our exclusive 5 step process. Hardware is included.


These side guards are to be used in conjunction with our front guards. These were designed to be installed without any drilling on the John Deere 3X20, 4X20 & 30XXR series but will fit many other models with flat uprights on the factory guard. Refer to the compatibility list below.


Compatible with the following models.


L3130, L3430, L3830, L5030

L2501, L3301, L3901, L4701

L3240, L3540, L3940, L4240, L4740, L5040, L5240, L5740

2011-2014 L3200 & L3800


L3560, L4060, L4760, L5060, L5460 L6060

MX4800, MX4700 & MX5100, MX5200, MX5400, MX5800, MX6000

M5660, M6060, M7060, M6040, M7040, M5140, M8540, M8560, M9540, M9960

M4-061, M4-071

M5-091, M5-111





John Deere:

3120, 3320, 3520 & 3720

2004-2014 4120, 2005-2014 4320

2005-2014 4520 & 4720

3033R, 3038R, 3039R; 3045R, 3046R


If you have any existing 5Eleven DesignZ guard, you may need to drill one hole per side to add these on. However, several will mount with the existing 5Eleven DesignZ guard without drilling. Please inquire if you have any questions to assure fitment.



Although we have developed these guards to assure there is ample clearance on the machines they were designed for, we ask that our customers confirm clearance prior to installation and operation of their machine. If there are hydraulic lines that are loose that may interfere, we suggest securing them to the loader arm to prevent chafing.


Feel free to give us a call if you have any questions.


Currently available in John Deere Green, textured black and chassis grey. Mounting hardware is included.

Grill Side Guards
