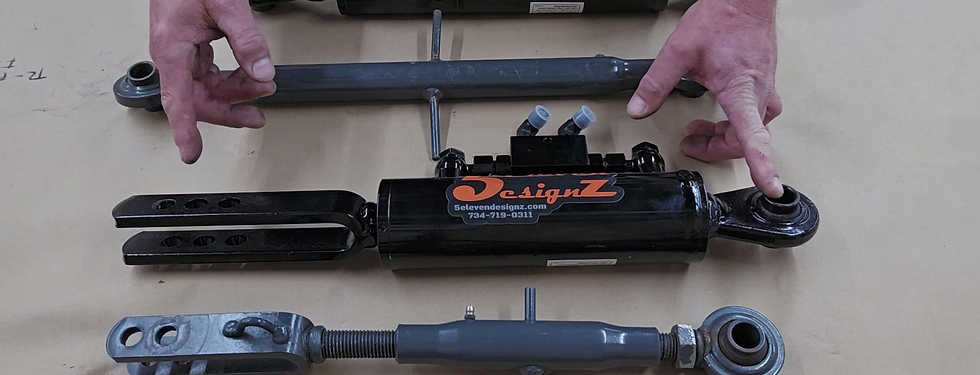

Replace your manual top link with our hydraulic top link kit and adjust the angle, pitch, and depth of your rear attachments right from the seat. No more climbing on and off the tractor to make adjustments; adjust on the fly for the desired result.

Here are some of the applications where a hydraulic top link shines:
Grading: Adjust a box blade or land plane's cutting edge to control cut and spread of material.
Ground Engagement: Adjust your plow or subsoiler to control angle and depth.
Mowing: Control cutting height and angle of bush hogs and flail mowers.
Attachment Hookup: Makes connecting attachments a breeze.
Easily raise your attachment when loading on a trailer or need to clear a ditch or other obstruction.

Our kits include everything needed to quickly get your work done more efficiently. Simply mount the cylinder, connect the hoses and plug the male couplers into your rear remote circuit. Each of our cylinders are equipped with 90° restrictor fittings for a clean installation and smooth control. They also have integrated check valves on each side to prevent drift and maintain the desired position.
Note: due to the check valves, these cylinders will not have the ability to float if your control valve has float capability. Reach out to us if you need your cylinder to have float capability.

Specifications:
Category 1
Cylinder Bore - 2"
Rod Diameter - 1.188"
Pin Bore - 0.75"
Ball Width - 1.75"
Operating Pressure - 2,300 PSI
Hoses - 1/4" x 36" or 1/4" x 48"
Couplers - 1/2" body male AG

Refer to the video above to measure links and determine compatibility, or watch it on our Youtube channel HERE.

8" Stroke Cylinder
Length Min: 18"
Length Max: 26"

11" Stroke Cylinder
Length Min: 21"
Length Max: 32"
