Replace your manual side link with our hydraulic side link kit and adjust the lateral angle (tilt) of your rear attachments right from the seat. No more climbing on and off the tractor to make adjustments; adjust on the fly for the desired result.

A hydraulic side link will enable you to get precise, consistent leveling while grading, ditching, and mowing on uneven terrain, significantly improving efficiency and stability.

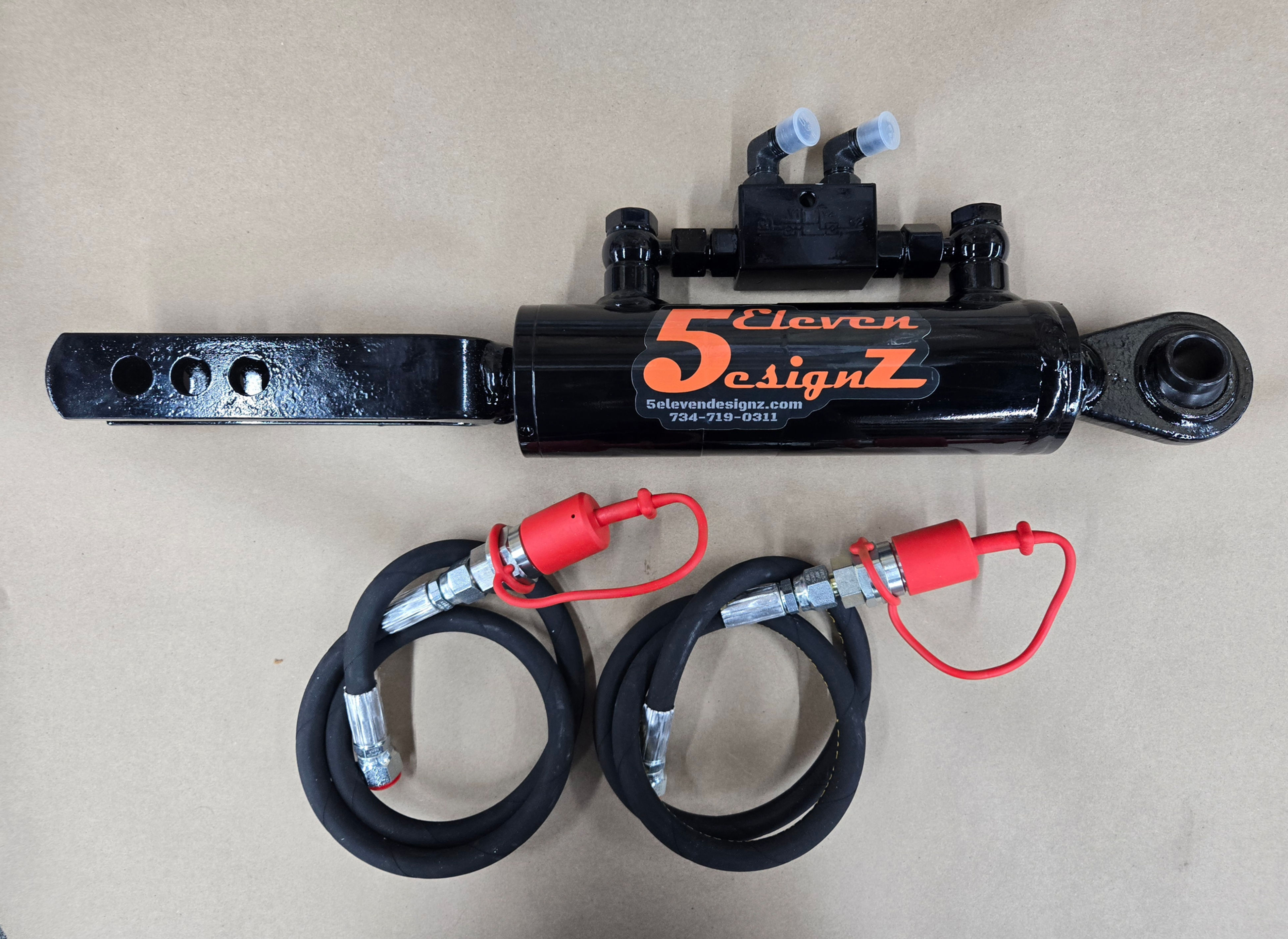

Our kits include everything needed to quickly get your work done more efficiently. Simply mount the cylinder, connect the hoses and plug the male couplers into your rear remote circuit. Each of our cylinders are equipped with 90° restrictor fittings for a clean installation and smooth control. They also have integrated check valves on each side to prevent drift and maintain the desired position.

Specifications:
Category 1
Cylinder Bore - 2.362"
Rod Diameter - 1.188"
Pin Hole Diameter - .787"
Ball Width - 1.75"
Fork Pin Hole Diameter - .65"
Fork Pin Hole Diameter Spacing (3) - 1"
Fork Inside Width - 0.866
Operating Pressure - 2,300 PSI
Hoses - 1/4" x 36" or 1/4" x 48"
Couplers - 1/2" body male AG

Refer to the video above to measure links and determine compatibility, or watch it on our Youtube channel HERE.

4" Stroke Cylinder
Length Min: 16"  *
Length Max: 20" *
*Taken from upper fork pin hole. Min/Max length will be 18~22" if lower fork pin hole is used.
